과거부터 개발하면서 꿈이 있었다면, 에러가 발생하더라도 서버에서 로그를 확인하지 않고도 바로 알도록 만드는 것이었다.

이런 시스템을 만들어두면 에러가 발생하자마자 바로바로 조치가 가능하기 때문이었다.



웹훅으로 만드려고 했으며, 가장 쉬운 슬랙을 사용했다.

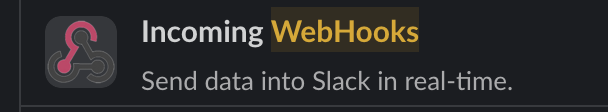

우선 슬랙에서 다음과 같은 앱을 추가하자



이 Incoming Webhooks를 사용해서 채널에 알림을 보낼것이다.



여기서 webhook url을 생성하고, 이 과정은 생략하도록 하겠다.



에러를 보고하는 서비스의 추상화를 만든다.

interface ErrorReporter {

    fun reportError(content: String, localDateTime: LocalDateTime)
}



현재는 슬랙으로 하고 있지만, 구현체가 변경될 수도 있으니 추상화로 만들어둔다.



@Service
class SlackErrorReporter(
    @Value("\${slack.webhook_url.error}")
    private val slackWebHookUrl: String
): ErrorReporter {

    override fun reportError(content: String, localDateTime: LocalDateTime) {

        val payload = mapOf("text" to "${localDateTime}에 $content")

        WebClient.create()
            .post().uri(slackWebHookUrl)
            .contentType(MediaType.APPLICATION_JSON)
            .bodyValue(payload)
            .retrieve()
            .bodyToMono(Void::class.java)
            .block()

    }
}



당연히 webhook의 주소는 깃에 노출되면 안되고 변경이 될 수 있기에 환경변수로 주입받는다.



http로 요청을 해야하기에 WebClient를 사용했다.



안에 들어가는 json 형식은 다음과 같다.

{
	"text": "에러 내용"
}

그렇기에 나는 여기에 시간과 에러의 내용을 보고하도록 만들었다.



그리고 이제 이 reporter를 사용해보자.

당연히 전역의 ExceptionHandler를 사용했다.



현재 멀티모듈을 사용하기에 container 역할을 하는 container 모듈에 다음과 같은 ExceptionHandler를 추가했다.



@ControllerAdvice
class GlobalExceptionHandler(
    private val errorReporter: ErrorReporter
) {

    @ExceptionHandler(Exception::class)
    fun handleException(e: Exception): ResponseEntity<ErrorResponse> {

        val sw = StringWriter()
        e.printStackTrace(PrintWriter(sw))
        errorReporter.reportError(sw.toString(), LocalDateTime.now())

        return ResponseEntity.internalServerError().build()
    }
}



errorReporter를 주입받고, 해당 에러에 대한 stackTrace를 errorReporter로 넘기게 된다.

클라이언트에게는 500에러를 그대로 반환한다.



이러면 서버에서 해결하지 못했던 모든 500에러가 슬랙을 통해 개발자에게 보고된다.



테스트를 해보도록 하자.

그냥 다짜고짜 컨트롤러에서 에러를 던져보았다.

throw IllegalStateException()



컨트롤러는 해당 에러를 처리할 수 없기에 클라이언트로 넘기려고 할거고, 그러면 전역 핸들러에 걸리게 될 것이다.

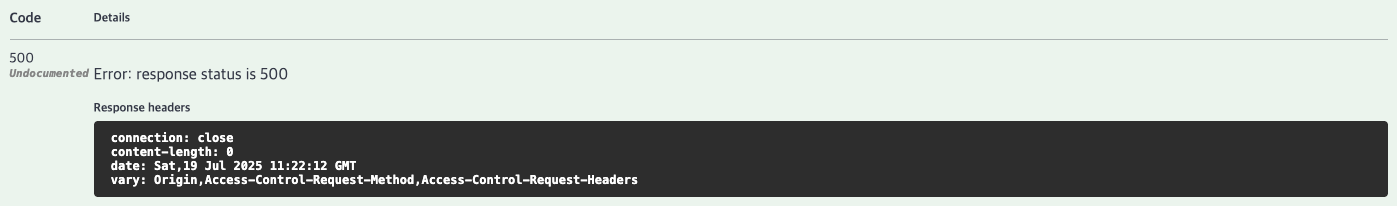

일단 Swagger에는 500에러가 나오게 된다.

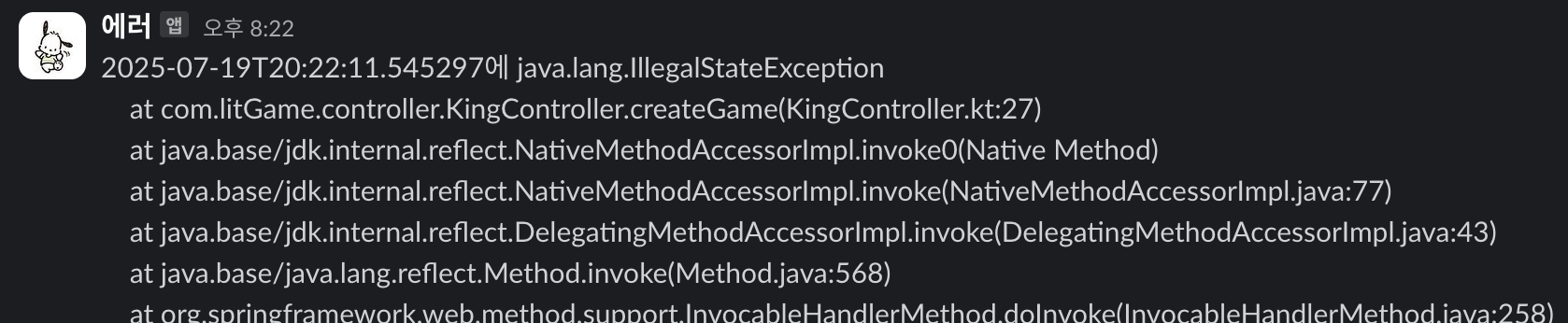

그리고 슬랙에서도 컨트롤러에서 IllegalStateException이 발생했다고 알림이 오는 것을 볼 수 있다.



반응형

스프링을 사용하다보면 @Transactional을 굉장히 많이 사용한다.



에러가 발생하면 transaction을 rollback 시켜주기 때문에 사용한다라고는 알고 있지만, 어떠한 방식으로 동작하는지는 제대로 알아보지 않은 것 같다.



우선 블로그들과 spring framework의 github를 참고했다.



@Transactional을 사용하면 interceptor가 중간에 가져와서 invokeWithinTransaction가 실행되도록 한다.



안에서 작성된 코드는 이정도 되는 것 같다.



https://github.com/spring-projects/spring-framework/blob/main/spring-tx/src/main/java/org/springframework/transaction/annotation/Transactional.java

protected @Nullable Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
			final InvocationCallback invocation) throws Throwable {

		// If the transaction attribute is null, the method is non-transactional.
		TransactionAttributeSource tas = getTransactionAttributeSource();
		final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);
		final TransactionManager tm = determineTransactionManager(txAttr, targetClass);

		if (this.reactiveAdapterRegistry != null && tm instanceof ReactiveTransactionManager rtm) {
			boolean isSuspendingFunction = KotlinDetector.isSuspendingFunction(method);
			boolean hasSuspendingFlowReturnType = isSuspendingFunction &&
					COROUTINES_FLOW_CLASS_NAME.equals(new MethodParameter(method, -1).getParameterType().getName());

			ReactiveTransactionSupport txSupport = this.transactionSupportCache.computeIfAbsent(method, key -> {
				Class<?> reactiveType =
						(isSuspendingFunction ? (hasSuspendingFlowReturnType ? Flux.class : Mono.class) : method.getReturnType());
				ReactiveAdapter adapter = this.reactiveAdapterRegistry.getAdapter(reactiveType);
				if (adapter == null) {
					throw new IllegalStateException("Cannot apply reactive transaction to non-reactive return type [" +
							method.getReturnType() + "] with specified transaction manager: " + tm);
				}
				return new ReactiveTransactionSupport(adapter);
			});

			return txSupport.invokeWithinTransaction(method, targetClass, invocation, txAttr, rtm);
		}

		PlatformTransactionManager ptm = asPlatformTransactionManager(tm);
		final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);

		if (txAttr == null || !(ptm instanceof CallbackPreferringPlatformTransactionManager cpptm)) {
			// Standard transaction demarcation with getTransaction and commit/rollback calls.
			TransactionInfo txInfo = createTransactionIfNecessary(ptm, txAttr, joinpointIdentification);

			Object retVal;
			try {
				// This is an around advice: Invoke the next interceptor in the chain.
				// This will normally result in a target object being invoked.
				retVal = invocation.proceedWithInvocation();
			}
			catch (Throwable ex) {
				// target invocation exception
				completeTransactionAfterThrowing(txInfo, ex);
				throw ex;
			}
			finally {
				cleanupTransactionInfo(txInfo);
			}

			if (retVal != null && txAttr != null) {
				TransactionStatus status = txInfo.getTransactionStatus();
				if (status != null) {
					if (retVal instanceof Future<?> future && future.isDone()) {
						try {
							future.get();
						}
						catch (ExecutionException ex) {
							Throwable cause = ex.getCause();
							Assert.state(cause != null, "Cause must not be null");
							if (txAttr.rollbackOn(cause)) {
								status.setRollbackOnly();
							}
						}
						catch (InterruptedException ex) {
							Thread.currentThread().interrupt();
						}
					}
					else if (vavrPresent && VavrDelegate.isVavrTry(retVal)) {
						// Set rollback-only in case of Vavr failure matching our rollback rules...
						retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
					}
				}
			}

			commitTransactionAfterReturning(txInfo);
			return retVal;
		}

		else {
			Object result;
			final ThrowableHolder throwableHolder = new ThrowableHolder();

			// It's a CallbackPreferringPlatformTransactionManager: pass a TransactionCallback in.
			try {
				result = cpptm.execute(txAttr, status -> {
					TransactionInfo txInfo = prepareTransactionInfo(ptm, txAttr, joinpointIdentification, status);
					try {
						Object retVal = invocation.proceedWithInvocation();
						if (retVal != null && vavrPresent && VavrDelegate.isVavrTry(retVal)) {
							// Set rollback-only in case of Vavr failure matching our rollback rules...
							retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
						}
						return retVal;
					}
					catch (Throwable ex) {
						if (txAttr.rollbackOn(ex)) {
							// A RuntimeException: will lead to a rollback.
							if (ex instanceof RuntimeException runtimeException) {
								throw runtimeException;
							}
							else {
								throw new ThrowableHolderException(ex);
							}
						}
						else {
							// A normal return value: will lead to a commit.
							throwableHolder.throwable = ex;
							return null;
						}
					}
					finally {
						cleanupTransactionInfo(txInfo);
					}
				});
			}
			catch (ThrowableHolderException ex) {
				throw ex.getCause();
			}
			catch (TransactionSystemException ex2) {
				if (throwableHolder.throwable != null) {
					logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
					ex2.initApplicationException(throwableHolder.throwable);
				}
				throw ex2;
			}
			catch (Throwable ex2) {
				if (throwableHolder.throwable != null) {
					logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
				}
				throw ex2;
			}

			// Check result state: It might indicate a Throwable to rethrow.
			if (throwableHolder.throwable != null) {
				throw throwableHolder.throwable;
			}
			return result;
		}
	}



우선 트랜잭션의 속성과 매니저를 가져온다.

TransactionAttributeSource tas = getTransactionAttributeSource();
TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);
TransactionManager tm = determineTransactionManager(txAttr, targetClass);



특별한 설정이 없다면, 트랜잭션을 처리한다.

PlatformTransactionManager ptm = asPlatformTransactionManager(tm);
...
if (txAttr == null || !(ptm instanceof CallbackPreferringPlatformTransactionManager cpptm)) {

}



아래의 메서드로 트랜잭션이 진행된다.



  • 트랜잭션 시작 (createTransactionIfNecessary)
  • 비즈니스 로직 실행 (invocation.proceedWithInvocation())
  • 예외 발생 시 롤백 (completeTransactionAfterThrowing)
  • 정상 종료 시 커밋 (commitTransactionAfterReturning)



아래의 메서드로 에러 발생시 롤백이 예약된다.

status.setRollbackOnly();







만약, 해당 트랜잭션이 중첩이 되어 있다면

호출한 트랜잭션으로 전파된다.

if (throwableHolder.throwable != null) {
    throw throwableHolder.throwable;
}
return result;



간단하게 정리하자면



  • Spring이 트랜잭션 어노테이션이 붙은 메서드를 감지
  • 그 메서드를 프록시(Proxy) 객체로 감쌉니다
  • 실제 메서드를 호출할 때, 프록시가 트랜잭션 관련 로직을 앞뒤로 끼워 넣습니다

이런식으로 트랜잭션이 처리된다.



반응형

면접에서 나왔던 질문이지만, 내가 대답하지 못했던 부분에 대해서 알아보려고 한다.



우선 트랜잭션이 무엇인지, 왜 필요한지는 이미 안다고 생각한다.



그리고 당연히 트랜잭션의 레벨이 높아질수록, 동시성이 떨어지기 때문에 성능이 떨어진다.

하지만 그만큼 고립시켜서 동작하기 때문에 일관성은 높아진다.



우선 크게

Read Uncommitted, Read Committed, Repeatable Read, Serializable

이렇게 4가지로 나뉘며, 오른쪽으로 갈수록 레벨이 높아진다.

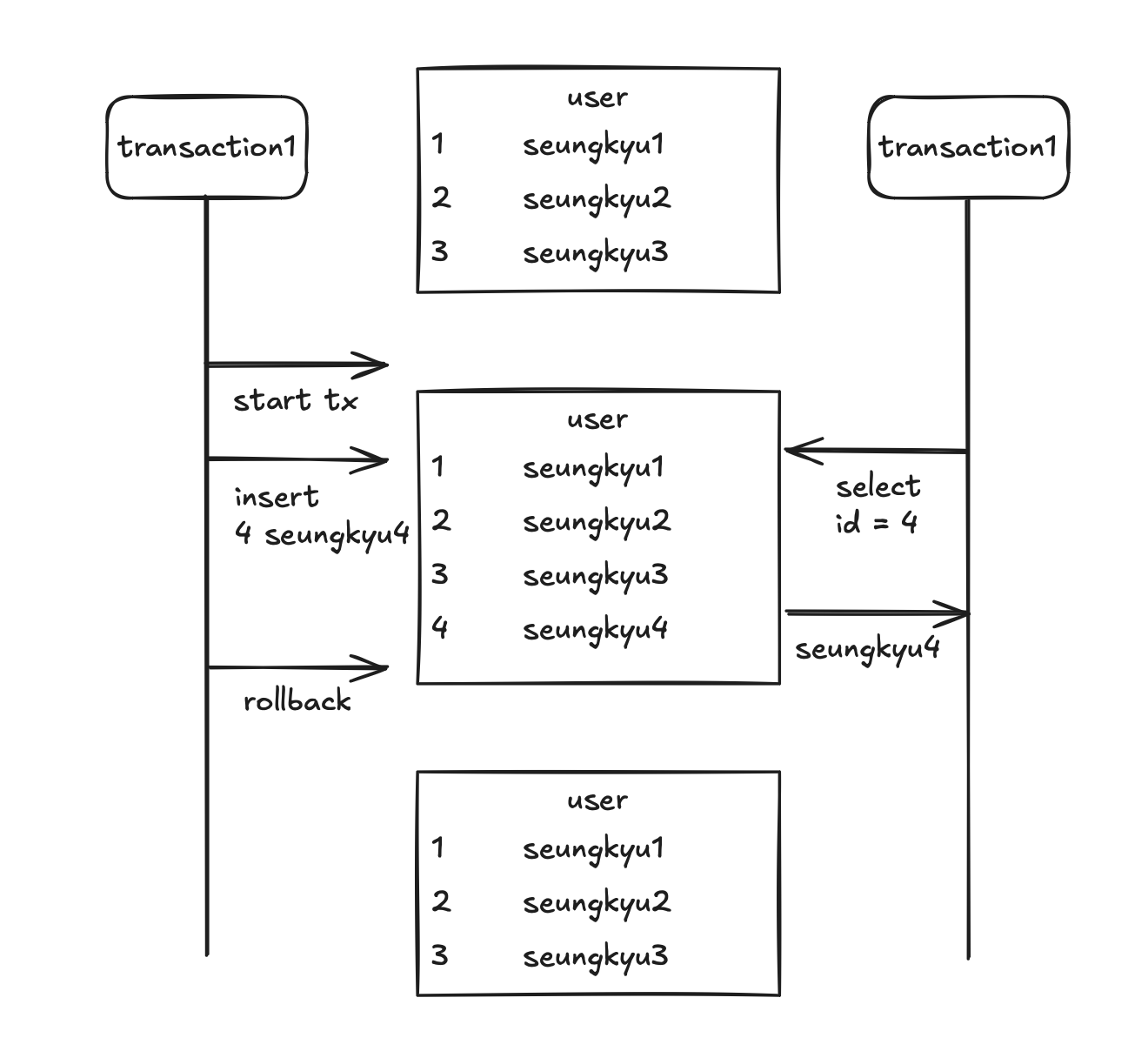

  • Read Uncommitted

트랜잭션이 처리중이거나, 아직 commit되지 않은 데이터를 다른 트랜잭션이 읽는 것을 허용한다.





이렇게 그냥 다른 트랜잭션에서 처리를 하고 있더라도, 데이터를 그냥 조회해서 값을 가져온다.

하지만 조회 후, 데이터가 rollback 되어 버리면 부정확한 데이터를 가져오게 된다.



이런 Dirty Read가 발생할 수 있기 때문에, 정확도가 너무 낮아 표준에서 인정하지 않는 격리 수준이라고 한다.

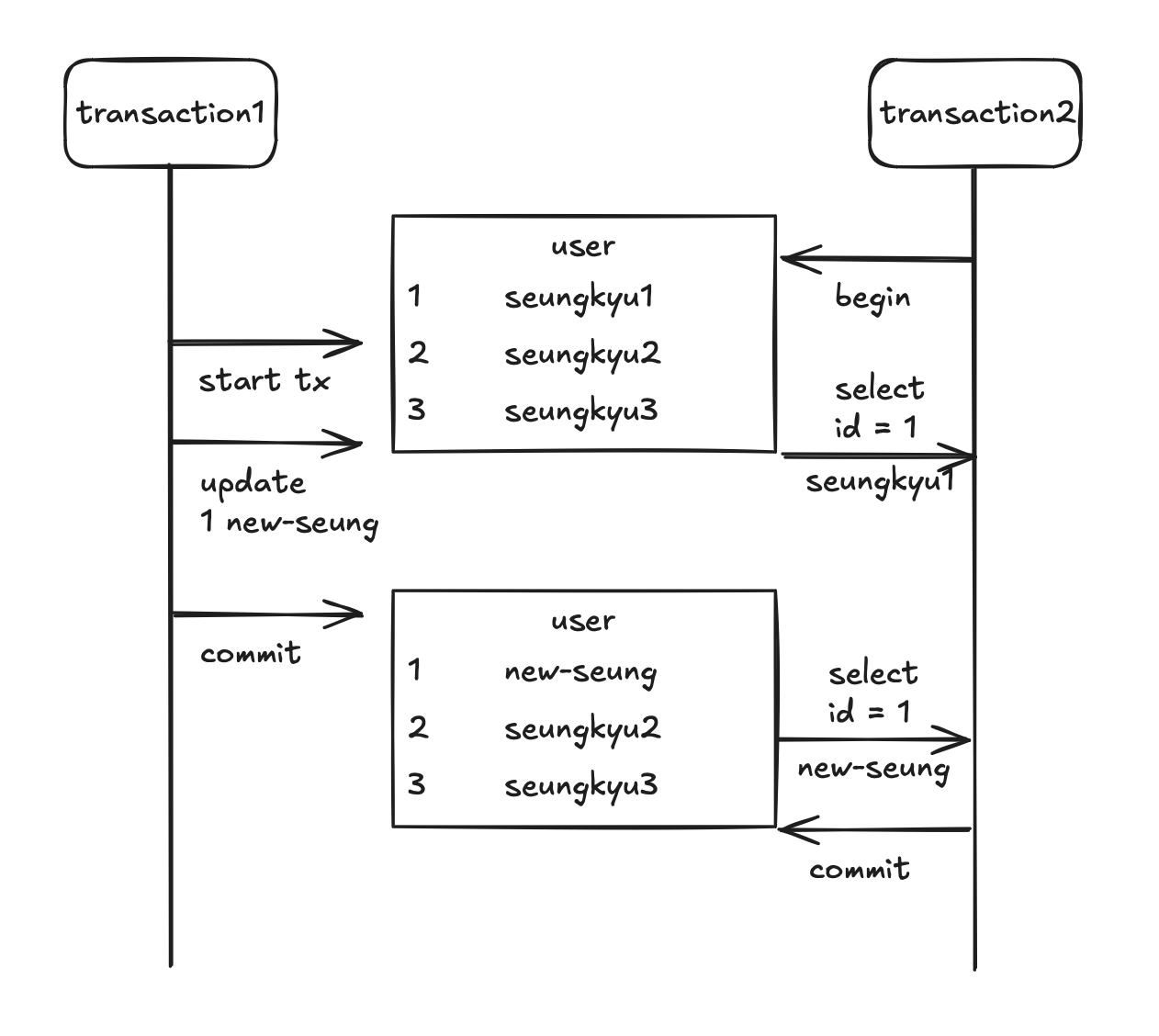

  • Read Committed

커밋된 데이터만 조회할 수 있도록 한다.

그렇기에 다른 트랜잭션이 접근 할 수 없어 대기하게 된다.

그렇기에 commit 되기 전의 데이터를 읽는 Dirty Read는 발생하지 않게 된다.



하지만, 하나의 트랜잭션에서 다른 트랜잭션의 commit에 따라 데이터의 조회 결과가 달라지는 Non-Repeatable Read 문제가 생기게 된다.

그렇지만 자주 발생하는 문제는 아니며, 대부분의 기본 설정이 이 Read Commited라고 한다.

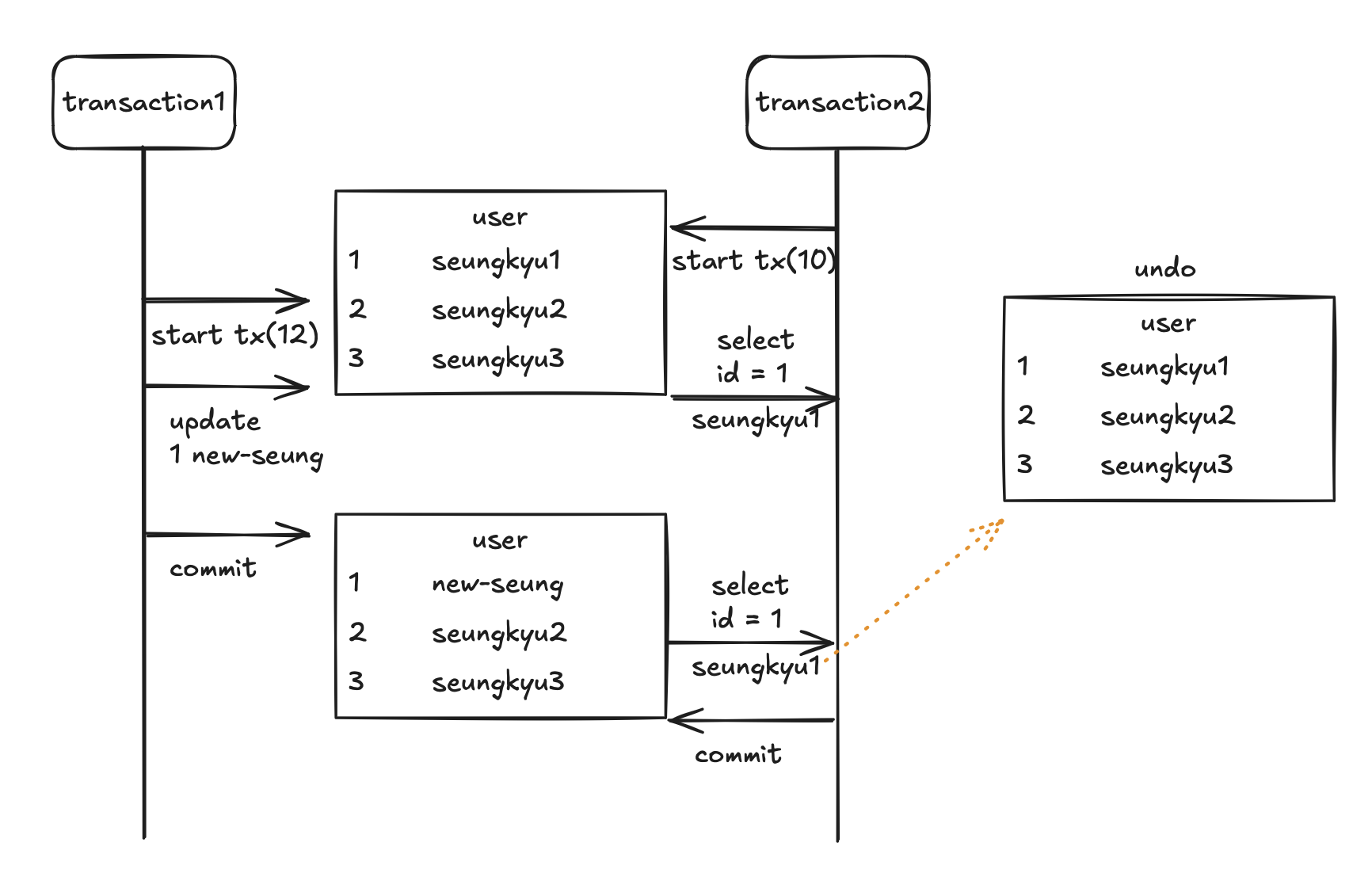

  • Repeatable Read

보통의 RDBMS는 변경 전의 데이터를 Undo 공간에 백업해둔다.

그렇기에 트랜잭션의 번호를 확인해, 자신보다 더 늦은 트랜잭션의 번호가 존재한다면 이 Undo 공간에서 데이터를 조회하게 된다.

그렇기 때문에, 다른 트랜잭션에 의해 변경되더라도 동일한 데이터를 조회할 수 있게 된다.



하지만 조회 트랜잭션동안 새로운 데이터가 추가되는 것을 감지하지 못하는 Phantom Read가 발생할 수도 있다고 한다.

그래도 이 Phantom Read는 트랜잭션의 번호를 확인해 무시하는 방법으로 해결 할 수 있으며, 현재의 RDBMS에서는 특정 상황이 아니라면 대부분 발생하지 않는 현상이기에 크게 신경쓰지는 않아도 된다고 한다.



  • Serializable

마지막은 가장 강력한 Serializable 레벨이다.

그냥 모든 트랜잭션을 순차적으로 실행시키기에 위에 소개했던 모든 정합성 관련 문제들이 발생하지 않는다.

하지만 동시성이 없어지기에 성능이 매우 떨어진다.

극단적으로 안정성이 필요한 경우가 아니라면 잘 사용하지 않는다고 한다.
